Communication

catalogue > communication > clamp
BONDING RIBBON CLAMP.jpg

Clamp: Bonding Ribbon

Used to attach bonding ribbon to manhole walls and roofsMaterial: Lead Strip

View Details

Clamp: Cable

Used for attaching cables to walls or other surfaces. Size identification is stamped on each clamp.C3-24A is manufactured from aluminum, all others...

View Details

Clamp: Crossover

Crossover Clamps are used for clamping messenger cables together when they cross each other at right angles.Bolts are high strength 1/2 inch (12.7 mm)...

View Details

Clamp: Drop Wire

Drop Wire Clamps consist of three basic parts body, wedge and shim.No. 22500 consists of hard aluminum body, shim and wedge, with a stainlesss steel...

View Details

Clamp: Figure 8 Cable

The basic unit for supporting Figure 8 Cable is a single aluminimum Clamp Section. These Clamp Sections are used in pairs and are reversible to...

View Details

Clamp: Figure 8 Cable (Supporting Unit)

For supporting straight runs and corners up to 5 ft. (1524 mm) pull, the Lag Clamp is available. It is equipped with a 1/2 inch(12.7 mm) lag thread...

View Details

Clamp: Ground

Strand Ground Clamps are used to provide a permanent electrical ground between cable sheath and messenger. The connection is soldered to the cable...

View Details
CLAMP GROUND.jpg

Clamp: Ground

This malleable iron clamp is used to ground from steel strand 1/4" (6.4mm) to 3/8" (9.5 mm) to a copper ground wire #9 to #4 size.

View Details
CLAMP GUY PAGE 1-11-1.jpg

Clamp: Guy

SLACAN Guy Clamps are made from hot rolled steel bars. The straight parallel grooves provide maximum holding area. The ends are sheared in a manner...

View Details

Clamp: Lashing Wire

No. 60053 Lashing wire Clamp is a galvanized formed steel clamp and is used to terminate the cable lashing wire.Available in 2 or 3 washer versions.

View Details
CLAMP LASHING WIRE PAGE 1-11-2.jpg

Clamp: Lashing Wire

The Lashing Wire Clamp is made from aluminium alloy sections with 3/8 inch (9.5 mm) galvanized steel hardware for clamping up to 4/0 conductor.

View Details

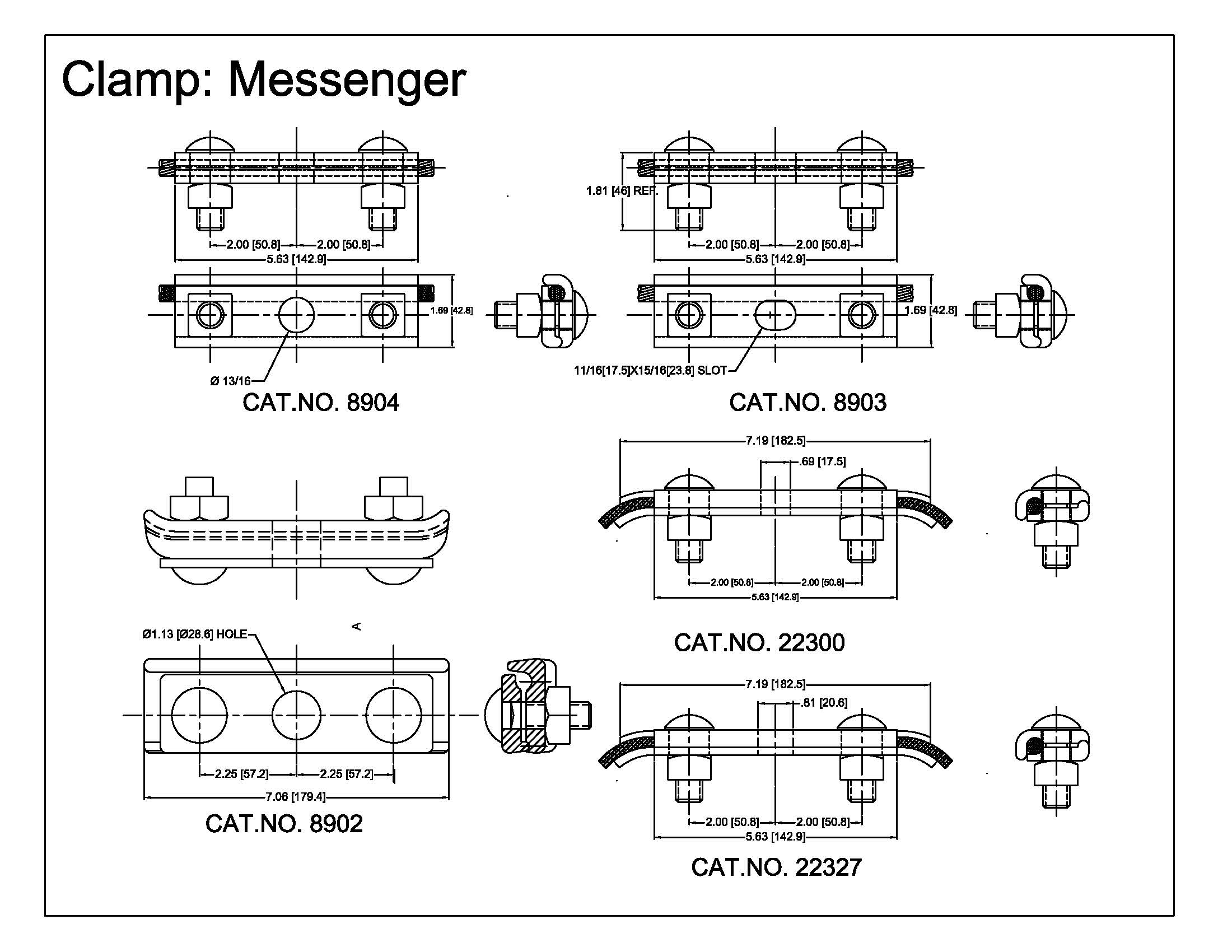

Clamp: Messenger

Messenger Clamps are produced from hot rolled steel bar and mounted on machine or double arming bolts.No. 8903 and 8904 are furnished with two high...

View Details
CLAMP PARALLEL GR PAGE 1-12-1.jpg

Clamp: Parallel Groove

The parallel groove clamps are made in aluminium or malleable iron.The large groove accommodates .25 - .81 (6.4 - 20.6 mm) diameter cableThe small...

View Details

Clamp: Span

Span Clamp (Type C) is used for making mid span service attachments. It is designed for use on strand sizes from 1/4 to 7/16 inches (6.4 to 11.1 mm)...

View Details
